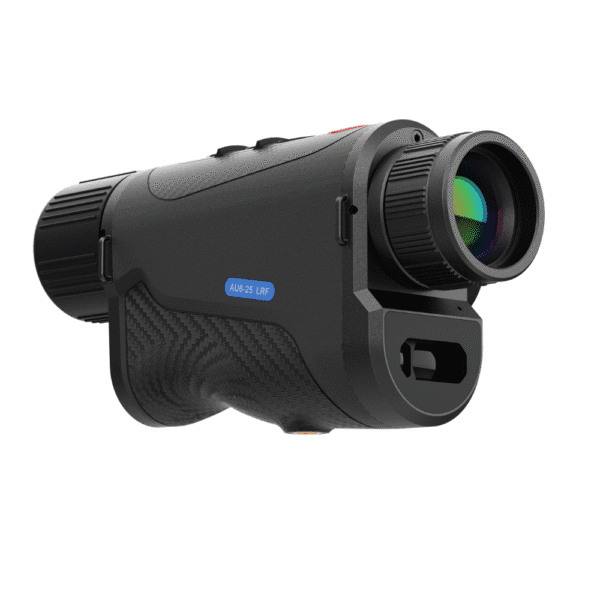

Thermal camera 640×512 – 35mm Lens and 1000m laser rangefinder

This 640×512 thermal camera with a 35mm interchangeable lens and 1000m laser rangefinder delivers the perfect combination of portability, precision, and endurance — ideal for hunting, surveillance, and tactical applications.

This compact and lightweight thermal riflescope combines high-resolution imaging, advanced detection, and integrated rangefinding for precision in the field. Featuring a 640×512 VOx sensor, NETD ≤18mK sensitivity, and a 35mm F1.0 interchangeable lens, it delivers crisp imaging and reliable performance for hunters and professionals alike. With a detection range of up to 1750m and a built-in 1000m laser rangefinder, it is engineered for accuracy and versatility in all environments.

Key Features

High-Resolution Thermal Imaging

• VOx (vanadium oxide) uncooled sensor, 640×512 resolution.

• 12μm pixel size with thermal sensitivity of ≤18mK for superior detail.

• 50Hz refresh rate for smooth, lag-free performance.

Precision Optics

• 35mm F1.0 interchangeable lens with 2× optical zoom.

• Digital zoom: 1× / 2× / 4× / 8×.

• Field of view: 12.5° × 9.4° for balanced coverage.

• Focus range: 5m – ∞ with –5 to +5D diopter adjustment.

• Detection range: up to 1750m (human-sized target).

Versatile Viewing Modes

• Image modes: White Hot, Black Hot, High Contrast, Fusion, Low Light.

• 0.39″ OLED display with 1024 × 768 resolution for sharp visuals.

Integrated Recording & Storage

• Capture photos (.jpg) and videos (.mp4) in 1024 × 768 resolution.

• Built-in 32GB memory card for extended storage.

Laser Rangefinder (LRF)

• Range: 20–1000m, accuracy: ±1m.

• 905nm wavelength for fast, reliable distance measurements.

Power & Endurance

• Runs on a single 18650 (3500mAh) rechargeable battery.

• Operating time: up to 5 hours at standard conditions.

• Supports USB 5V external power for longer sessions.

Rugged & Reliable Design

• Compact and lightweight: 416.65g (with 35mm lens).

• Dimensions: 154.65 × 68.55 × 75.4mm.

• IP67 water resistance, fully operational in –20°C to +50°C.

Wireless Connectivity

• Wi-Fi 802.11 b/g, 2.4GHz, with up to 15m line-of-sight range.

• Enables easy sharing and remote control via compatible devices.
